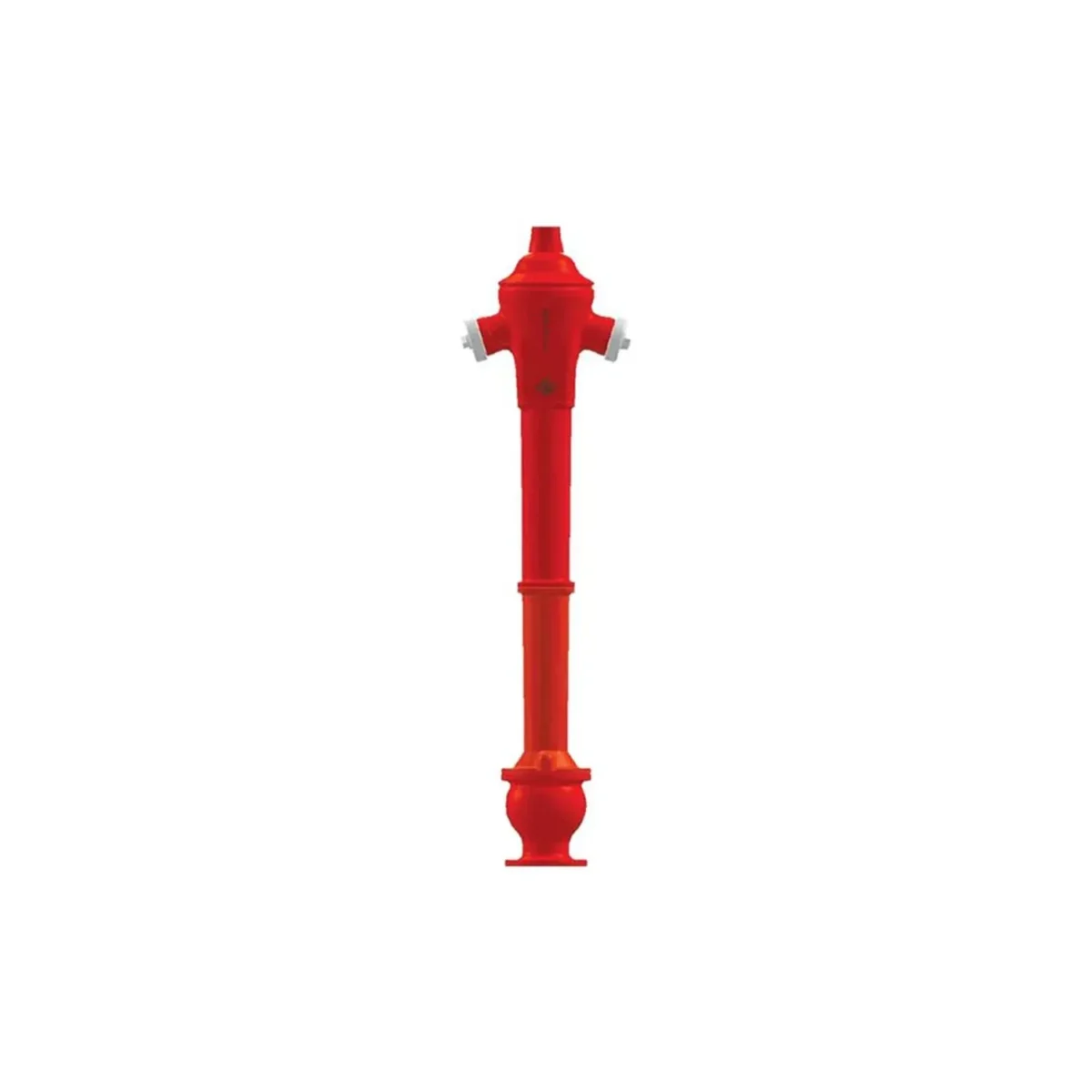

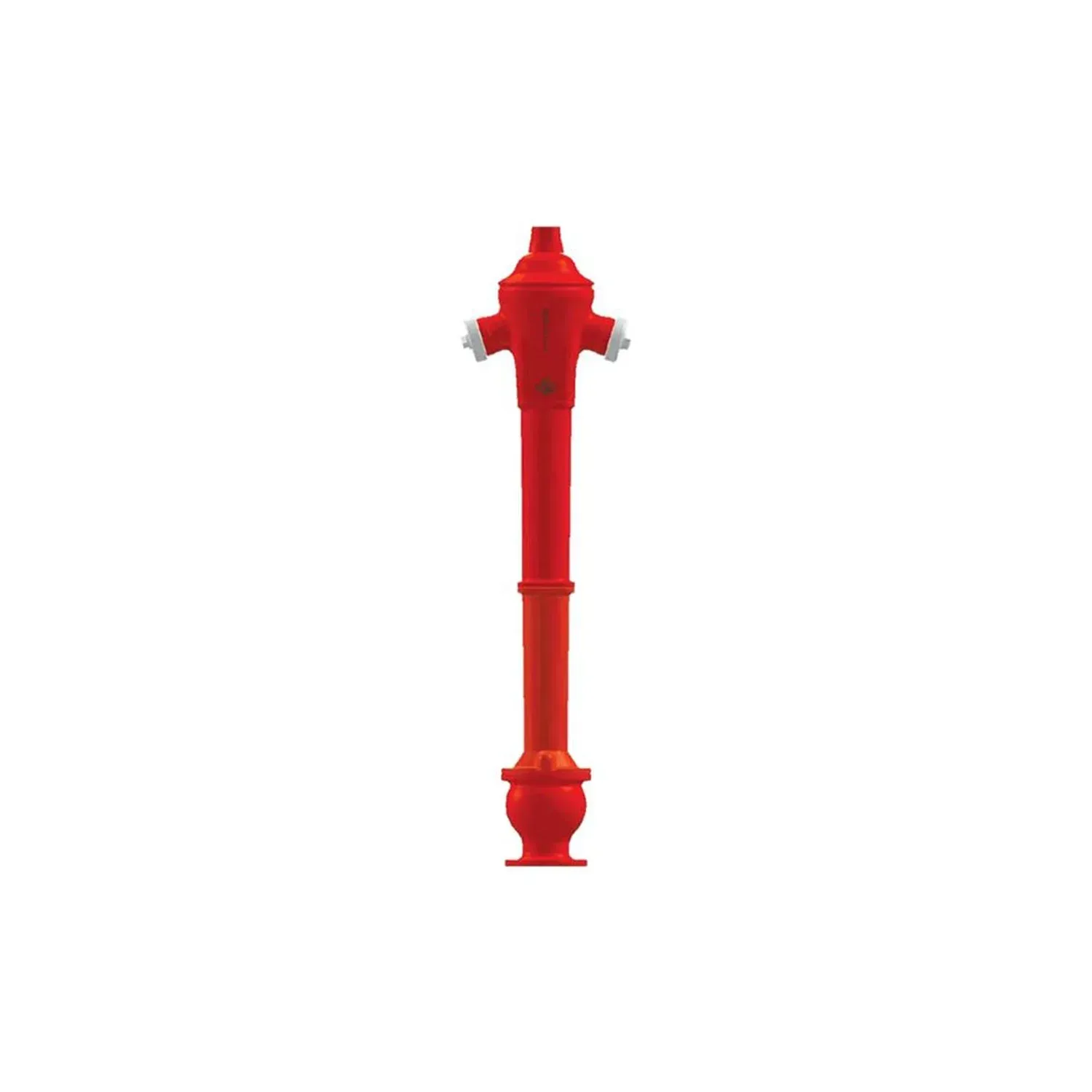

Spring Type Above Ground Fire Hydrant
Description
- These are hydrants that are used to take water with a hose in pressurized water networks, with two outlet water intake nozzles on the ground (optional 3 outlets). It consists of the shaft that controls the hydrant valve, the spring-loaded valve (check valve) that acts as an automatic drain, hose connection fittings and casting parts that make up the main body. With the help of the hydrant switch, the shaft is controlled and the opening and closing process is realized. When the shaft is turned counterclockwise, the drive tube moves downwards. Thus, the valve parts in the body move down and the hydrant is opened. When the shaft is turned clockwise, the hydrant is closed. The valve closes in the direction of water flow. Thus, the sealing of the valve under pressure in the system is increased. This system creates a turbulence-free and linear flow, reduces pressure loss, prevents vibrations and extends the life of the hydrant. This allows water to be sprayed over greater distances. The hydrant must be closed, especially in cold weather, in order for the valve to drain the water in the hydrant. The spring-loaded valve opens automatically as there is no pressure and drains the water from the valve.
