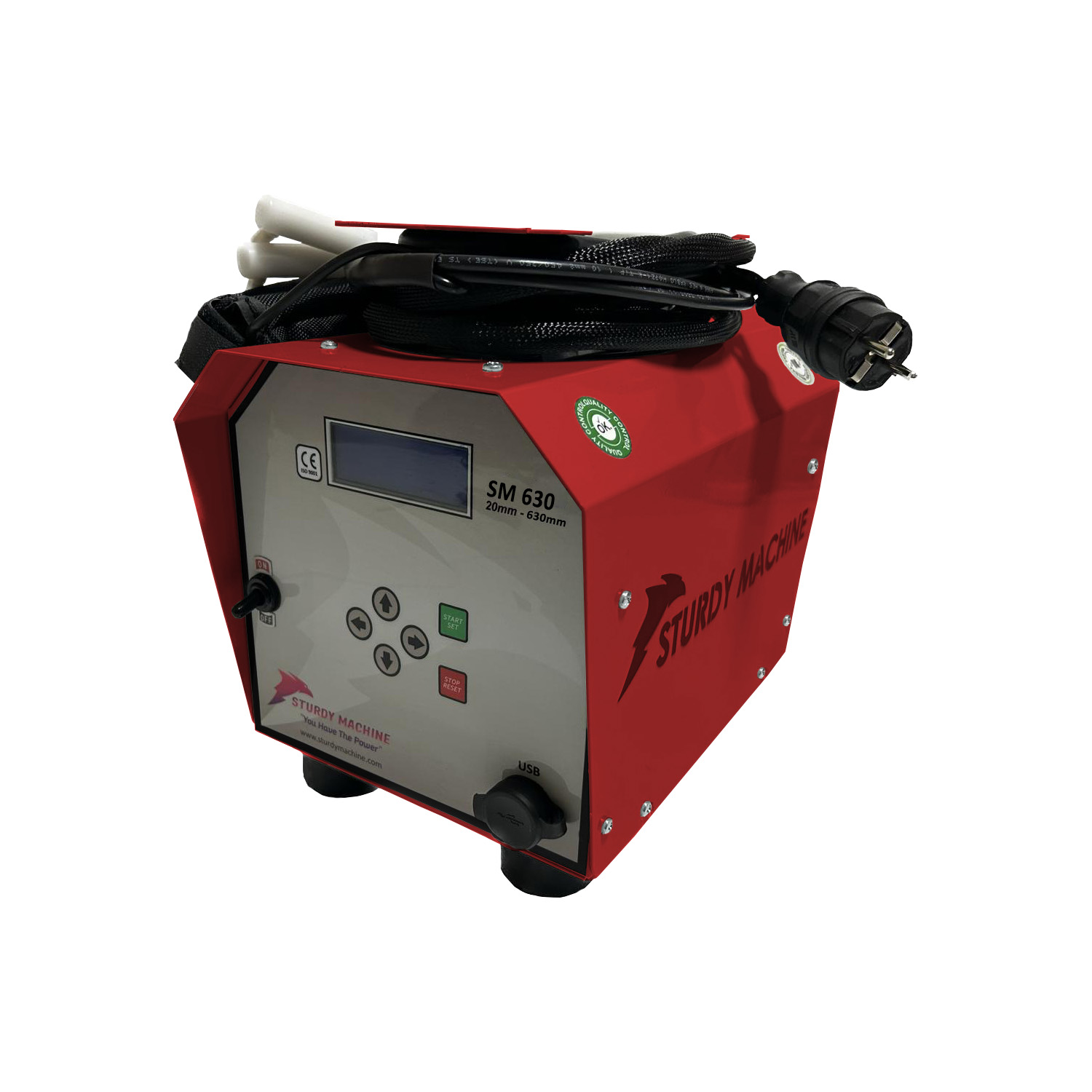

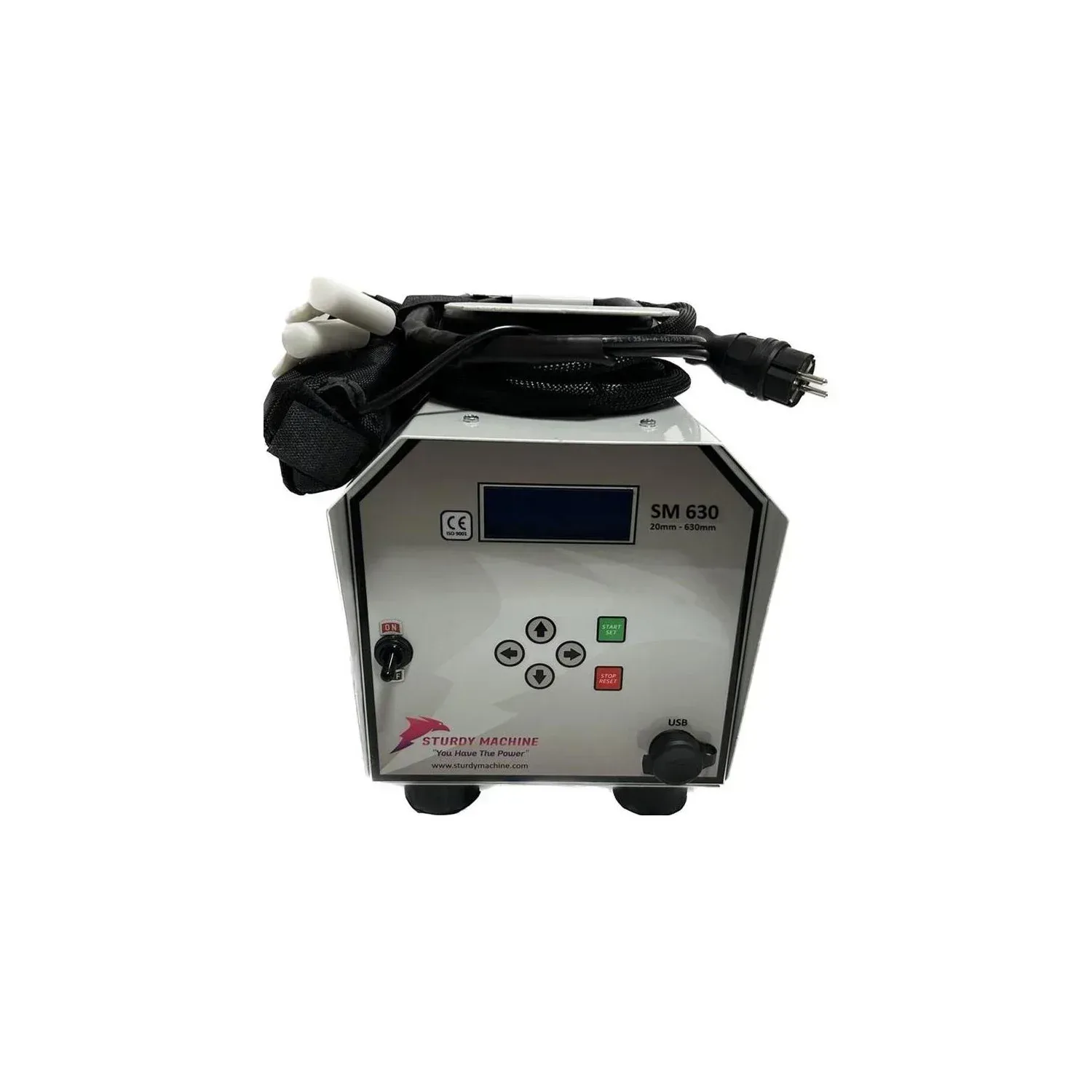

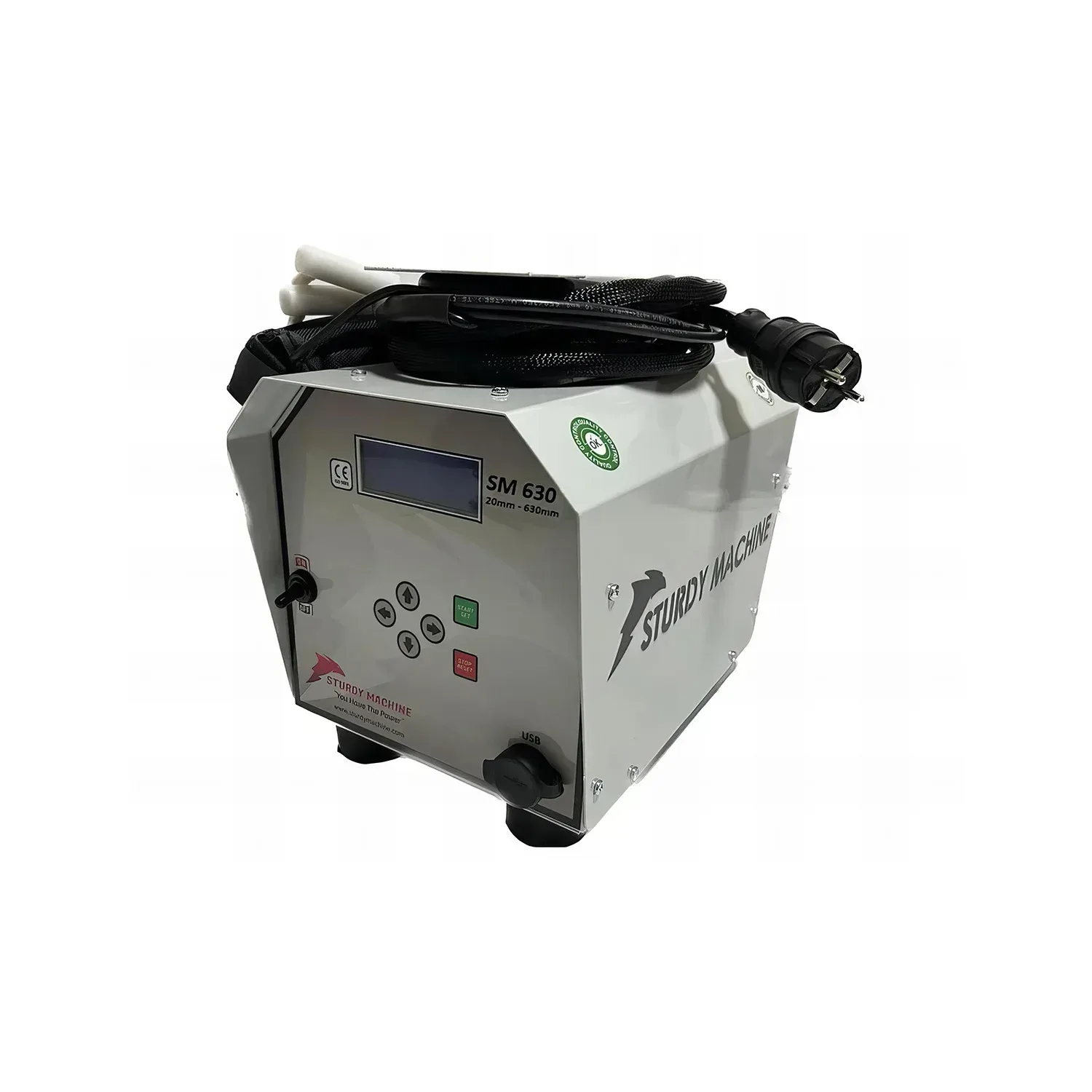

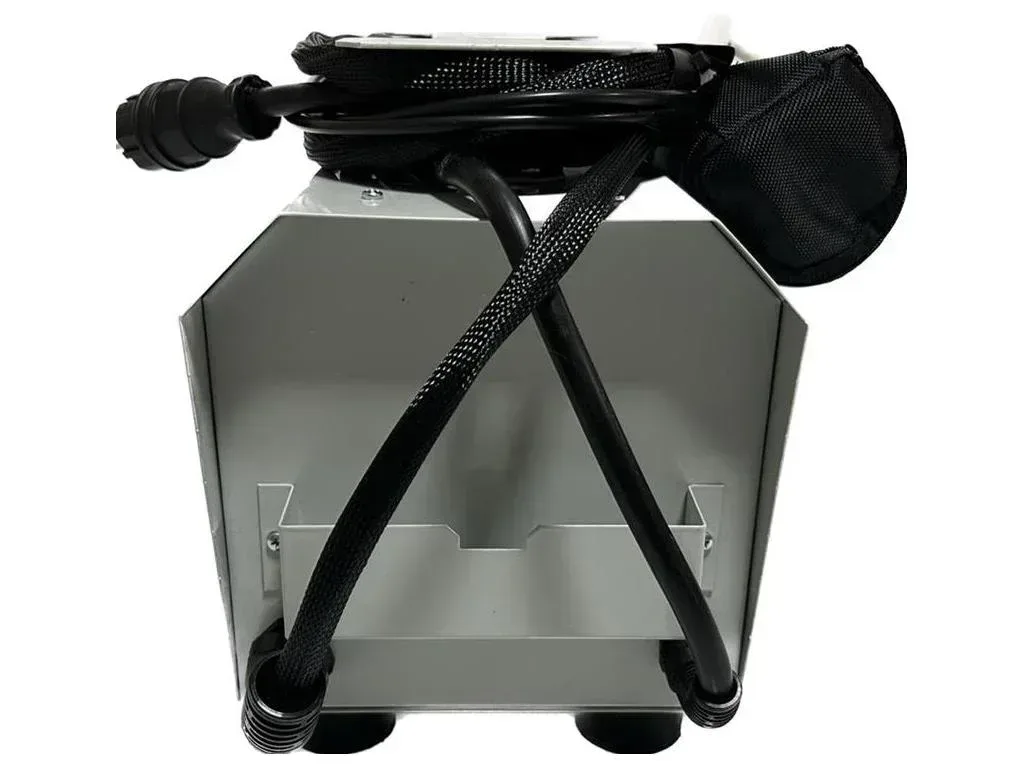

Sm-630 Electrofusion Welding Machine
Electrofusion is a method of welding by applying a heating process by means of electric current. This method heats the attachment (sleeve) by applying electric current at the appropriate values to the specified parts.
| Weight | 15 kg |
|---|---|
| Dimensions | 22 × 27 × 33 cm |
| Weld Diameter |
20-630 mm |
| Input Voltage |
160-270V AC 50 – 60 Hz |
| Output Voltage |
8-48 V AC |
| Output Power |
3000 W |
| Max. Output Current |
80 Amp |
Description
| Weld Diameter | 20-630 mm |
| Input Voltage | 160-270V AC 50 – 60 Hz |
| Output Voltage | 8-48 V AC |
| Output Power | 3000 W |
| Max. Output Current | 80 Amp |
| Protection Class | IP54 |
| Operating Temperature | -20 oC+60 oC |
| Dimensions | 220mm X 270mm X 330mm |
| Weight | 14.5 Kg |
| Input Cable | 3m |
| Output Cable | 3m |
| Barcode Scanner | √ |
| Scraper | √ |
| Manual Welding | √ |
| Report Capacity | 4000 |
